Dogcatcher 2 Users Guide

Getting data from serial port to USB drive

Quick Start

1. If transmit unit is not set to 9600 baud, set config.txt file on USB stick to match data transmission.
2. Plug dogcatcher into transmit unit. See Pinout section for details.
3. Power the Dogcatcher 2 with the power supply included in the kit or with dc voltage between 8 and 30 volts.
4. Ensure green LED is blinking or on, which means power is good. If the LED is not blinking and you used your own power supply, ensure that you did not reverse power and ground.
5. Plug in memory stick. The green LED will go from blinking to solid on.
6. Allow data to be logged.
7. If necessary, push button on Dogcatcher 2 next to USB stick to close file on USB stick and allow safe removal of USB stick. Do not remove the stick when the amber LED is solid on.
8. The data may be read from the stick by any computer with a USB port.

Introduction

The Dogcatcher 2 is a serial data logger. It is designed to be easy to use without configuration yet flexible for a wide range of tasks. RS-232 baud rate, timestamping and capture filename can be set through a configuration file on the USB stick, and can be saved in flash onboard the Dogcatcher 2. Data is stored on a standard USB memory stick. The Dogcatcher 2 is designed for use where a computer would be insecure, too expensive, too large or impractical.

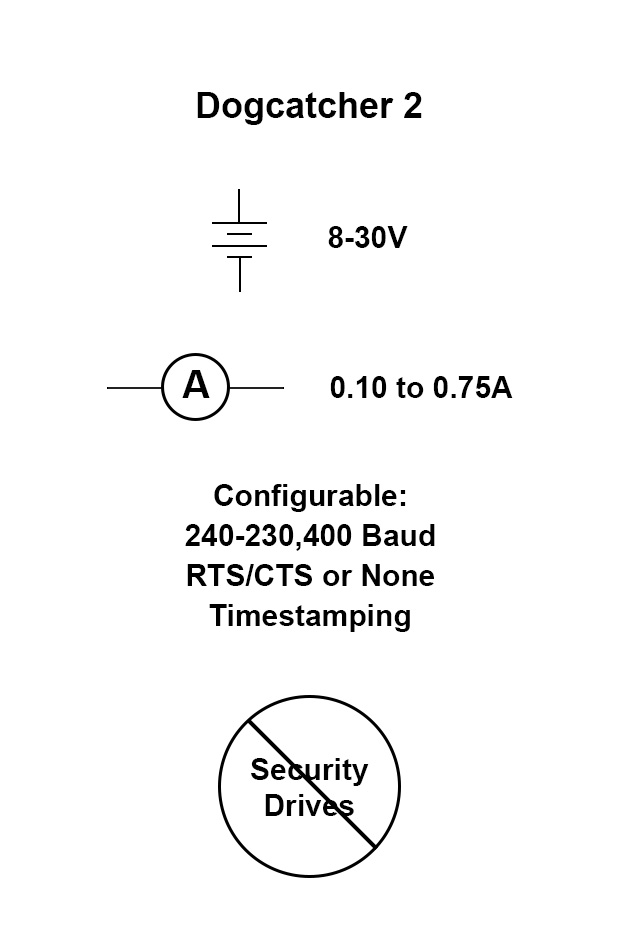

Specifications

Input voltage: 8VDC-30VDC
Input current: Internally fused at 0.75A. Actual current draw depends on memory stick used. Typical current draw is 0.1A.
Timestamping can be configured to occur after a user defined character of character pair.
Communication settings: The baud rate is 9600 bps by default, or a value set in config.txt. Permissible values range from 2400 baud to 230,400 baud. The Dogcatcher 2 is set to 8 bits per character, no parity, 1 stop bit, no flow control. RS232 standard voltages.
Handshaking may be configured as RTS/CTS or NONE.
Unless changed in the configuration file, writes data after 64 bytes received, or 7 second timeout between received bytes.
Flash drive must be formatted for the FAT32 file system. The majority of flash drives satisfy this requirement.

Output File

Except for user enabled timestamping, the Dogcatcher 2 writes data to the USB stick exactly as it is received over the serial port. Tab delimited data remains tab delimited. Comma separated data remains comma separated. Images and other binary files will be uncorrupted. The filename of the data logged is either CAPTURE.TXT by default, or a name set by the user in config.txt. The user may rename the output file to have an extension appropriate to their data type.

Configuration Options

Configuration options are set in config.txt on the USB stick. They are parroted back in the actualConfig.txt file written by the Dogcatcher 2 to the USB stick. A user wishing to change options may place a USB stick in the Dogcatcher 2 to have the actualConfig.txt written to the USB stick. The user may then modify the file name to config.txt and modify the settings as needed, for example changing baud=9600 to baud=115200

Name

Factory Default Value

Description

baud

9600

The baud rate at which the Dogcatcher is to receive data. Supported rates are 2400, 4800, 9600, 19200, 38400, 57600, 115200 and 230400. Other rates between 110 and 921000 may work, but are unsupported.

flowControl

NONE

Supported options are NONE and RTSCTS.

capturefile

capture.txt

The name of the file on the USB stick where data will be logged. If this file does not exist, the Dogcatcher 2 will create it. The capture file name should be 1 to 20 characters.

doNotAppend

FALSE

If FALSE and a file by the capturefile name exists, new data will be logged to the end of the existing file. If TRUE and a file by the capturefile name exists, new data will be logged to a file which has an incrementing number appended to the base of the capturefile name. For example, suppose capturefile is capture.txt and doNotAppend is true and a the USB stick has capture.txt on it. New data will be written to capture1.txt until the stick is removed. When the stick is reinserted, data will then be written to capture2.txt.

timeStamp

FALSE

If true, a timestamp and colChar will be inserted after each lineTerm string received.

TSLineTerm

\r \n

String which, when found in the incoming RS-232 data, will be followed by insertion of a time stamp. Maximum 2 characters in the TSLineTerm string. Has no effect if timeStamp=FALSE

TSColChar

,

Character which is inserted after any timestamp which the Dogcatcher inserts. May be comma, space or any ascii character. Has no effect if timeStamp=FALSE

LEDDim

5 Adjusts the brightness of LEDs. Can be used for power savings when using a battery. Allowable values are 0-9. 9 turns off the LEDs entirely.

Bufferbytes

64 In order to avoid overly fragmenting the memory on a USB stick, the Dogcatcher will not write the received data until (1) bufferbytes (e.g. 64 bytes) have been received or (2) periodicClose has expired without more data arriving or (3) the pushbutton is pushed.

periodicClose

7 Every periodicClose seconds, all buffered data will be sent to the USB stick, then the capture file will be closed for 3 seconds. Data is written after periodicClose, even if less than bufferbytes has been received

uartstatus

FALSE

If true, device status will be sent on TX pin of RS232 port. Otherwise, TX pin of RS-232 port will be in the idle state.

RestoreFactory Defaults

FALSE

Sets unit to factory default settings. Does not affect NVRAM. After power on reset, unit will return to user settings. To permanently restore to factory defaults, the user will have to use the file SaveUserDefaults.txt

IgnoreRTCLostP WR

FALSE

If set to TRUE, the Dogcatcher 2 will not generate an error if the real time clock loses power. This directive will only work if it is set as a user default in flash

To set device defaults – If a blank file of name SaveUserDefaults.txt is on the USB stick, the Dogcatcher 2 will write the current device settings to onboard flash and will erase the SaveUserDefaults.txt file on the USB stick.

To use configuration options.

1. Get ActualConfig.txt. Dogcatcher 2 will write this to any stick inserted.
2. Modify the settings as needed. Refer to this document for available options. Save this file as Config.txt in the root directory of the USB stick.
3. Insert stick with Config.txt into the Dogcatcher 2 and power cycle.
4. Take stick to PC and verify settings in ActualConfig.txt are as desired.
5. Create file SaveUserDefaults.txt on stick in order to save these settings to flash on the Dogcatcher. Once the settings are in flash (non-volatile RAM) they will be set automatically on power up.
6. Insert USB stick in Dogcatcher2.
7. Power cycle and verify ActualConfig.txt contains the desired settings.

Dogcatcher2 is ready for deployment.

To configure several Dogcatcher 2 units, get working settings in the Config.txt file. Then add the SaveUserDefaults.txt file and set its attributes to read only, which will prevent the Dogcatcher 2 from deleting it. Now insert the stick into each Dogcatcher 2 you wish to modify. It is very important not to have a read only SaveUserDefaults.txt on the stick used for data logging because writing flash memory repeatedly will shorten the life of the Dogcatcher 2 and will not be covered under warranty.

Timestamping

The real time clock can be set either from the USB stick or by an RS-232 date time string. The clock can be set through a SetTime.txt file on the USB stick. This file is read and the time is set when the USB stick is inserted. Once the Dogcatcher 2 uses SetTime.txt, it deletes the file.

To set the time through the Dogcatcher 2 serial port: (1) Remove power and any USB stick from the Dogcatcher 2. (2) Push and hold push button switch or activate remote switch (3) Power on Dogcatcher 2, you may release button when the prompt is sent to the serial term software (4) Send RS-232 date time string.

Time must be in format MM/DD/YYYY HH:MM:SS\r.

If your application will never make use of the time stamping feature, you may wish to set the configuration line “IgnoreRTCLostPWR=True”. Then set user defaults in flash. This will prevent the unit from blinking an error code if the RTC loses power.

The real time clock is powered capacitively. If time keeping is important to you, allow the unit to charge for 30 minutes before disconnecting power. The unit should hold a charge for about one week at room temperature. Low or high temperatures may adversely affect the ability to hold a charge, and may affect the accuracy of the clock.

LED Blink Codes

Green LED

Sold off

No Power

Blinking

Unit powered on, no flash drive detected. Flash drive needs to be formatted for FAT filesystem with a cluster size of 512 bytes. The majority of flash drives satisfy these requirements off the shelf. Security enabled drives are not supported.

Solid on

Flash drive is detected. Dogcatcher is ready to log data.

Yellow LED

Sold off

File on memory stick is not open and data is not buffered.

Blinking

Dogcatcher 2 has data in its buffer, waiting to be written to a memory stick.

Solid on

Data file on flash drive is currently open. DO NOT REMOVE FLASH DRIVE at this time or data loss is guaranteed and file system corruption is possible. Approximately 7 seconds after the Dogcatcher 2 stops receiving data the file will be closed and the stick may be removed.

Red LED

On blink

Real time clock has lost power and needs to be reset.

Three Blinks

Data buffer has been overrun. This could happen if there is something wrong with the flash drive, or the flash drive is badly fragmented, or the drive’s root directory has too many files in it. It is recommended that the flash drive is blank.

Four Blinks

Flash drive is full.

Five Blinks

Flash drive is read only.

Six Blinks

RS-232 frame error. Ensure baud rate is correct. Protect unit and serial cable from electrical noise.

Seven Blinks

The file system on the USB stick should be checked for errors.

Eight Blinks

Error in config.txt file. Please consult configErr.txt for more information.

Nine Blinks

The time file or time set string is incorrect. It should be MM/DD/YYYY HH:MM:SS, all time fields must have leading zeros, and year requires 4 digits

Ten Blinks

A compatible file system was not found. Stick should be FAT32.

Eleven Blinks

Could not find a unique filename for capture file, please delete unnecessary files.

Twelve Blinks

Internal hardware error with real time clock. Contact Brigantine Electronics for a replacement.

Pinouts

Dogcatcher 2, Power Cable Pinout Barrel Jack, 2.1mm ID, 5.5mm OD x 18mm length

Ground

Outer contact

Power, +8VDC to +30VDC

Inner contact

Dogcatcher 2, DB9 Pinout

Pin 1

Power Ground (optional, instead of using barrel connector)

Pin 2

RX

Pin 3

TX

Pin 4

RS-232 Ground

Pin 5

Power In (optional, instead of using barrel connector) +8 to +30VDC

Pin 6

RTS

Output String

Meaning

S0,

Stick inserted

S1,

Output file was opened

S2,

Output file was closed

S3,

Stick was removed

F<integer>,

Error has occurred. will be replaced by an ASCII number representing the error state. This is the same as the error blink codes, so an F1 would mean that the RTC has lost power.

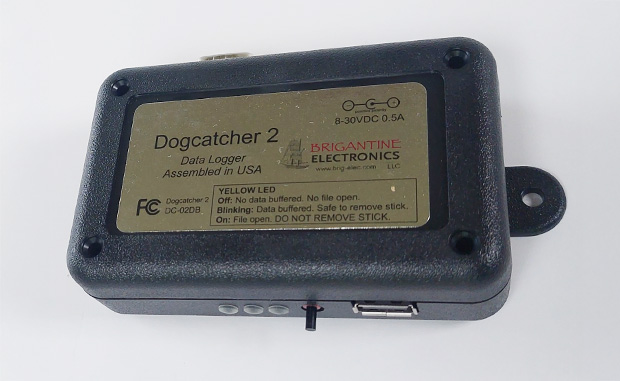

Push button for closing file

When the push button is activated, the Dogcatcher 2 will close the file on the USB stick, and suppress writes for 6 seconds. Once the capture file has been closed, the user has 6 seconds to safely remove the USB stick. Removing the USB stick while the amber light is solid on will usually cause loss of data and, in rare cases, USB stick file system corruption. The switch input on the terminal block may be used in place of the push button.

Filenames used by Dogcatcher 2

In the filename, upper and lower case letters may be used interchangeably.

ActualConfig.txt

Written to any USB stick inserted. This file is the actual, current setup. It should be compared to config.txt to ensure your intended settings are reflected.

Capture.txt

The default filename for data which is logged.

Config.txt

Is how the user specifies the settings for the Dogcatcher 2.

Configerr.txt

Tells which line of config.txt was not parsed properly.

Err.txt

Gives details of error indicated by red LED.

SaveUserDefaults.txt

See “To Use Configuration Options”

SetTime.txt

See “Timestamping”

Dogcatcher Dimensions

The outer case dimensions are the same for all versions of the data logger. The DB9 connector is shown. The DB9 is replaced by a recessed terminal block on the embedded Dogcatcher 2.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help

The Original Dogcatcher

The original Dogcatcher is a quick and easy serial data logger solution for many applications with the most common RS-232 settings: 9600 baud, 8N1. The Dogcatcher is the most economical choice for use with most scales and many RFID systems.

The Dogcatcher 2

The Dogcatcher 2 is a feature rich serial to USB data logger. The user can select the RS-232 baud rate, enable or disable RTS/CTS handshaking, and configure timestamping. The configuration options on the Dogcatcher 2 serial data logger allow its use with many GPS systems, pressure sensors and automated test systems.
